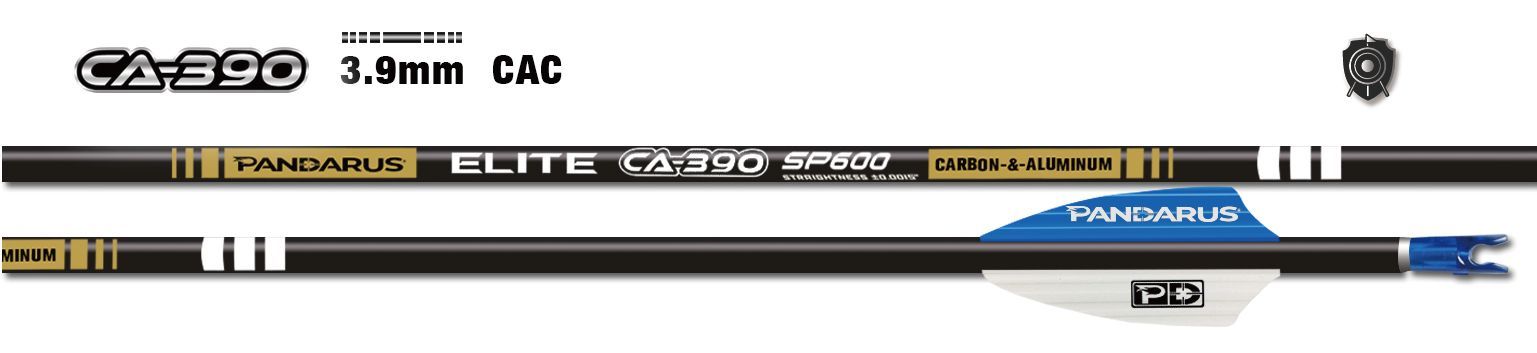

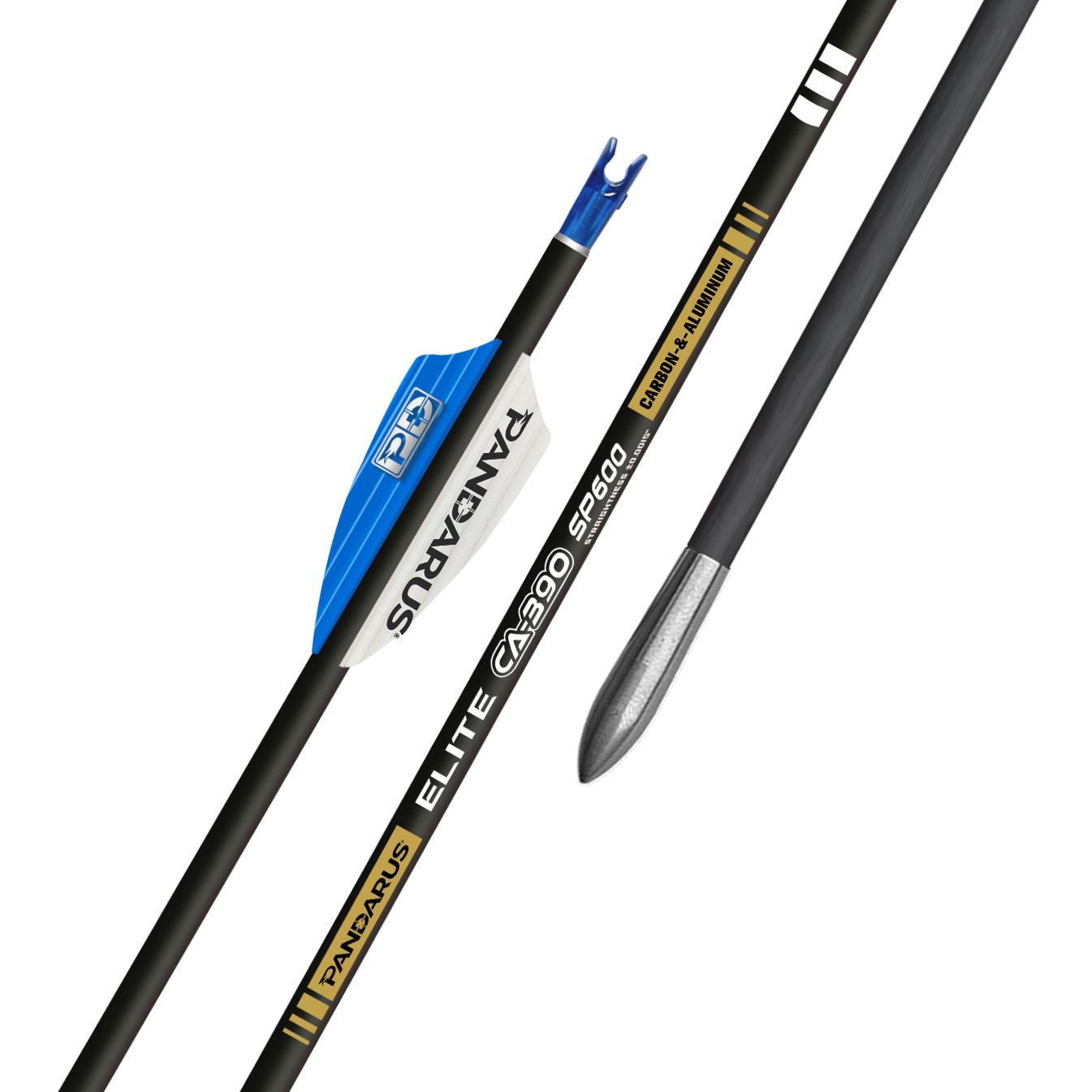

ABOUT CA390

As the member CAC arrow family, CA390 has the unique ID size of 3.9mm, it’s an Entry-level ACA arrow, It’s borned for all types archery shooting, whatever the long distance or shorter distance, recurve bow or Compound bow, it can perform well for all, compare with pure carbon arrows, the CAC construction greatly reduces ineffective twisting and maintains an excellent attitude during flight, it can give the archer big confidence.

ABOUT CA390

As the member CAC arrow family, CA390 has the unique ID size of 3.9mm, it’s an Entry-level ACA arrow, It’s borned for all types archery shooting, whatever the long distance or shorter distance, recurve bow or Compound bow, it can perform well for all, compare with pure carbon arrows, the CAC construction greatly reduces ineffective twisting and maintains an excellent attitude during flight, it can give the archer big confidence.

Specifications:



  • 3.9/0.154” ID, Micro diameter design
  • High strength Carbon and 7075 aluminum composited

        (CAC structure)

  • Parallel shape
  • Straightness: ±.002″
  • Spine aligned
  • Lubricated finish
  • Weight tolerance per DZ: +/-1.5gr

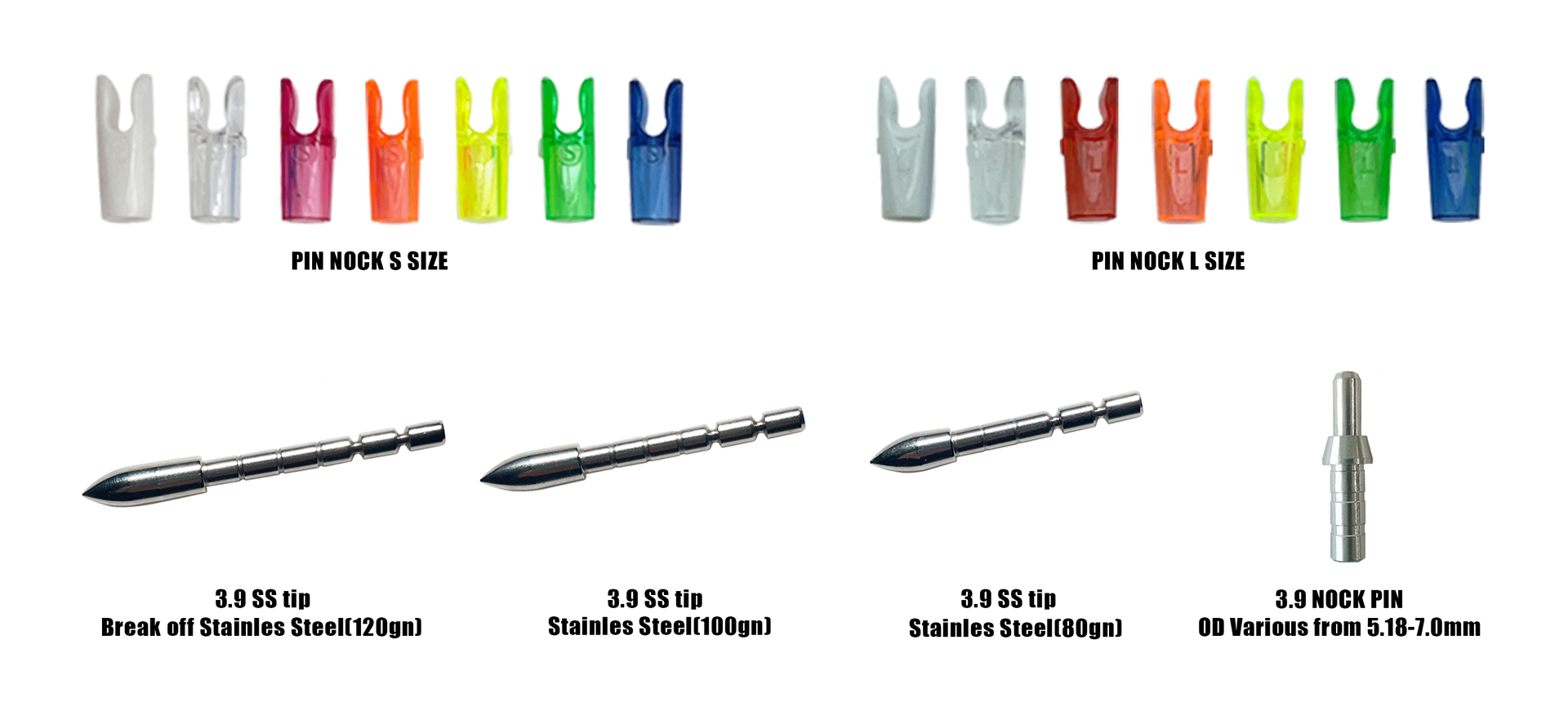

  • Stainless steel points,7075 PIN, and L size PIN nock are all supplied

Specifications:

  • 3.9/0.154” ID, Micro diameter design
  • High strength Carbon and 7075 aluminum composited

        (CAC structure)

  • Parallel shape
  • Straightness: ±.002″
  • Spine aligned
  • Lubricated finish
  • Weight tolerance per DZ: +/-1.5gr
  • Stainless steel points,7075 PIN, and L size PIN nock are all supplied

KEY FEATURES

Spine Outer Diameter GPI Length Point Weight Recommened
350 9.06mm 10.87 32'' 100-120gr
400 5.88mm 9.81 32'' 100-120gr
450 5.77mm 9.13 32'' 100-120gr
500 5.68mm 8.66 32'' 100-120gr
550 5.61mm 8.28 32'' 100-120gr
600 5.52mm 7.81 31'' 80-100gr
650 5.46mm 7.56 31'' 80-100gr
700 5.40mm 7.10 31'' 80-100gr
750 5.39mm 6.93 31'' 80-100gr
800 5.32mm 6.75 31'' 80-100gr
850 5.30mm 6.50 30'' 60-80gr
900 5.23mm 6.19 30'' 60-80gr
1000 5.17mm 5.94 30'' 60-80gr
